The problem:
I had developed the 7 MHz CW TRX for my
first trip to the US. The receiver worked very well. (Actually a lot better
than here in Europe since they do not have high power broadcast stations
on 7.1 MHz.) The transmitter is also quite ok. 1.5 Watts is not a lot,
but that was the compromise I had chosen to save current. The thing that
was not really good was the temperature stability in transmit mode. While
it was no problem at all to listen to a certain station for a couple of
minutes without retuning, the LO really started to drift in TX mode. If
I made a longer transmit, giving my name, my QTH and the report I really
had a hard time to recognize the other station when I was back in RX mode.
And it was really hard to find friends on a certain frequency since the
analog frequency readout was quite coarse.
The solution:
I decided I needed a PLL (phase-locked-loop)
synthesizer with a crystal as frequency standard. I did not know about
a PLL IC for 7 MHz that would give a small enough step width. Having a
RX filter that is only a few hundred Hertz wide, I needed a maximum of
100Hz as tuning step width. So I choose a quite unusual solution. I used
a 900 MHz VCO (readily available from a couple of suppliers, usually used
in mobile telephones) and a MB15E07 PLL synthesizer from Fujitsu. It can
give a step width of 8kHz at 1GHz. The 900 MHz signal is divided by 128
by a cheap U893 prescaler from Temic Semiconductors. This reduces the frequency
to 7MHz and the step width to 62.5 Hz. For programming the PLL I need a micro controller
anyway, so I decided to remove the analog instrument and
replace it by a LCD-Display. This way I can realize a digital frequency
readout. To be frank I liked the analog instrument but the digital frequency
readout makes it a lot easier to find your QSO partner if you have an appointment
(a sked) with a friend or so.
The realisation:
I have made a SMD circuit board carrying
the RF stuff on one side and the digital stuff on the other side. Have

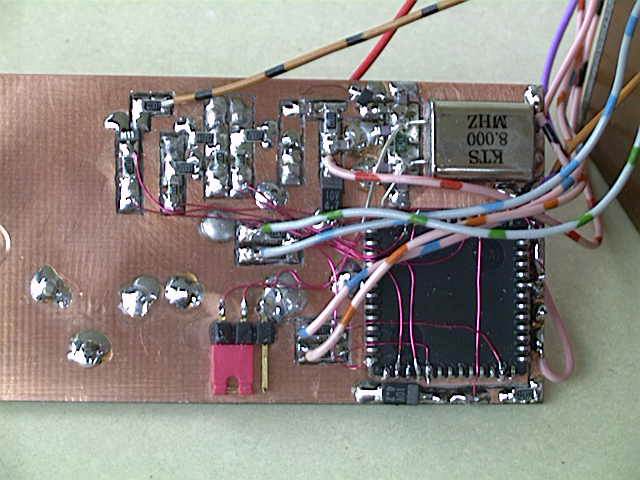

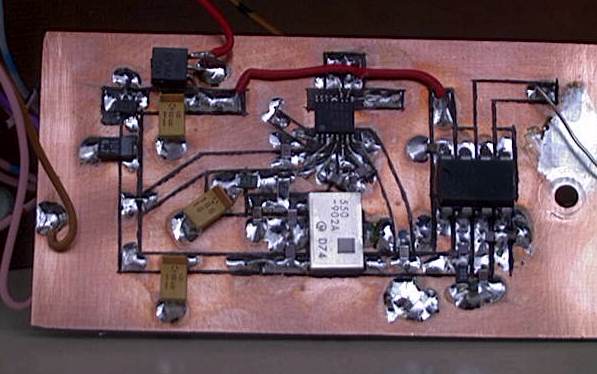

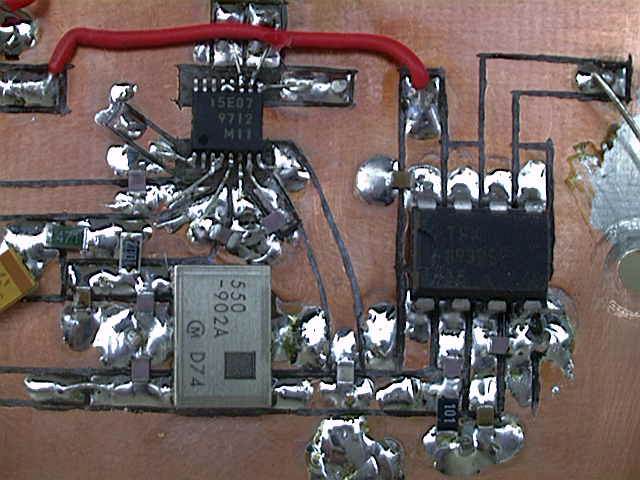

a look at these pictures:

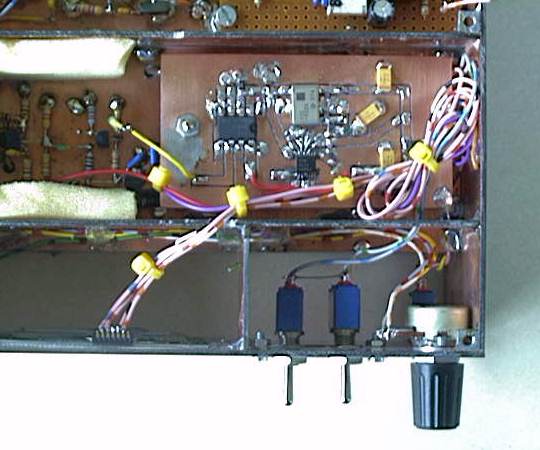

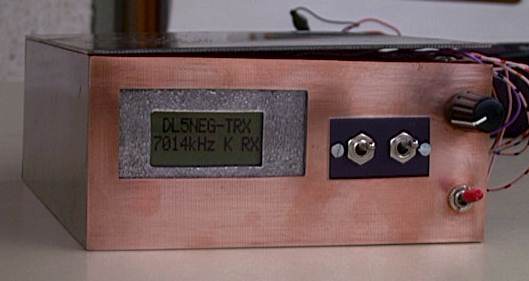

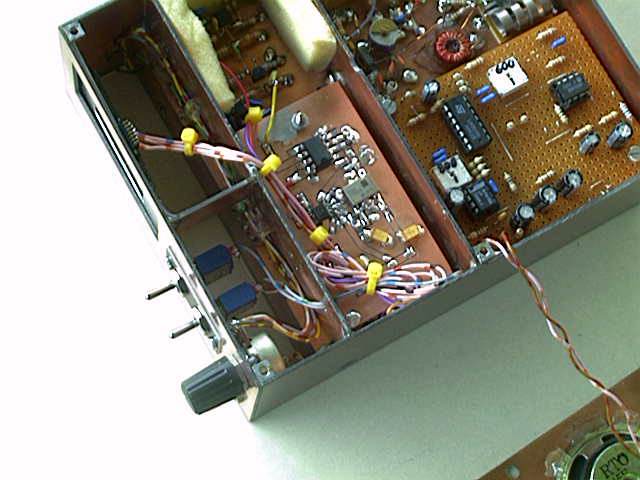

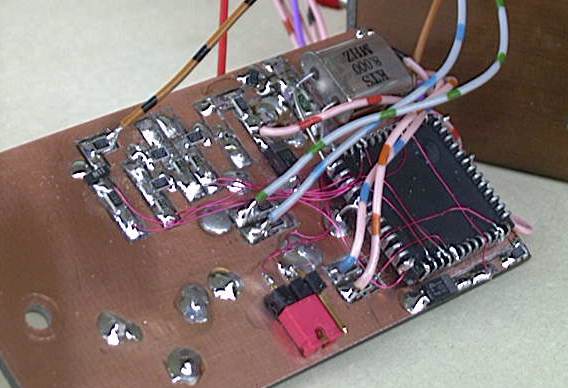

I fixed the new board with a screw and metal bolt at the space where the old VCO was located before. See for yourself how it looks now in Picture1 and Picture2.
As I mentioned before I have also removed

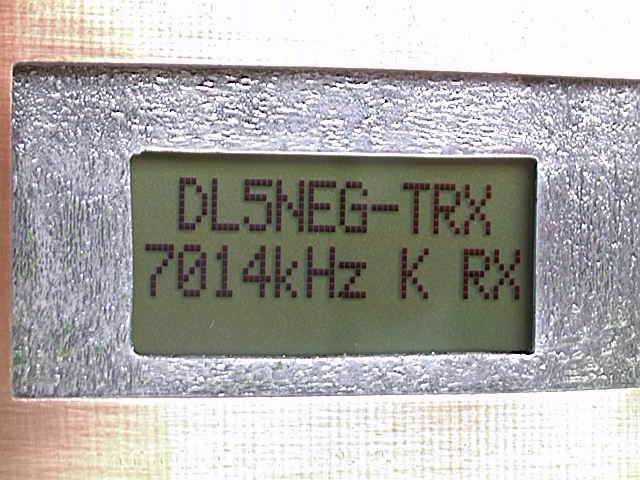

the analog instrument and have replaced it by a small LCD display (see
picture). And the big tuning wheel had to be removed to make space
for two keys that are used now to tune up and down (see
picture of the new front). There is a software function that waits
a short while after the first frequency step. This makes it possible to
tune in single steps (62.5Hz wise). If you press one key a little longer
the CPU starts to tune continuously at a speed that makes it possible to
find frequencies with potential QSO partners.
The schematics

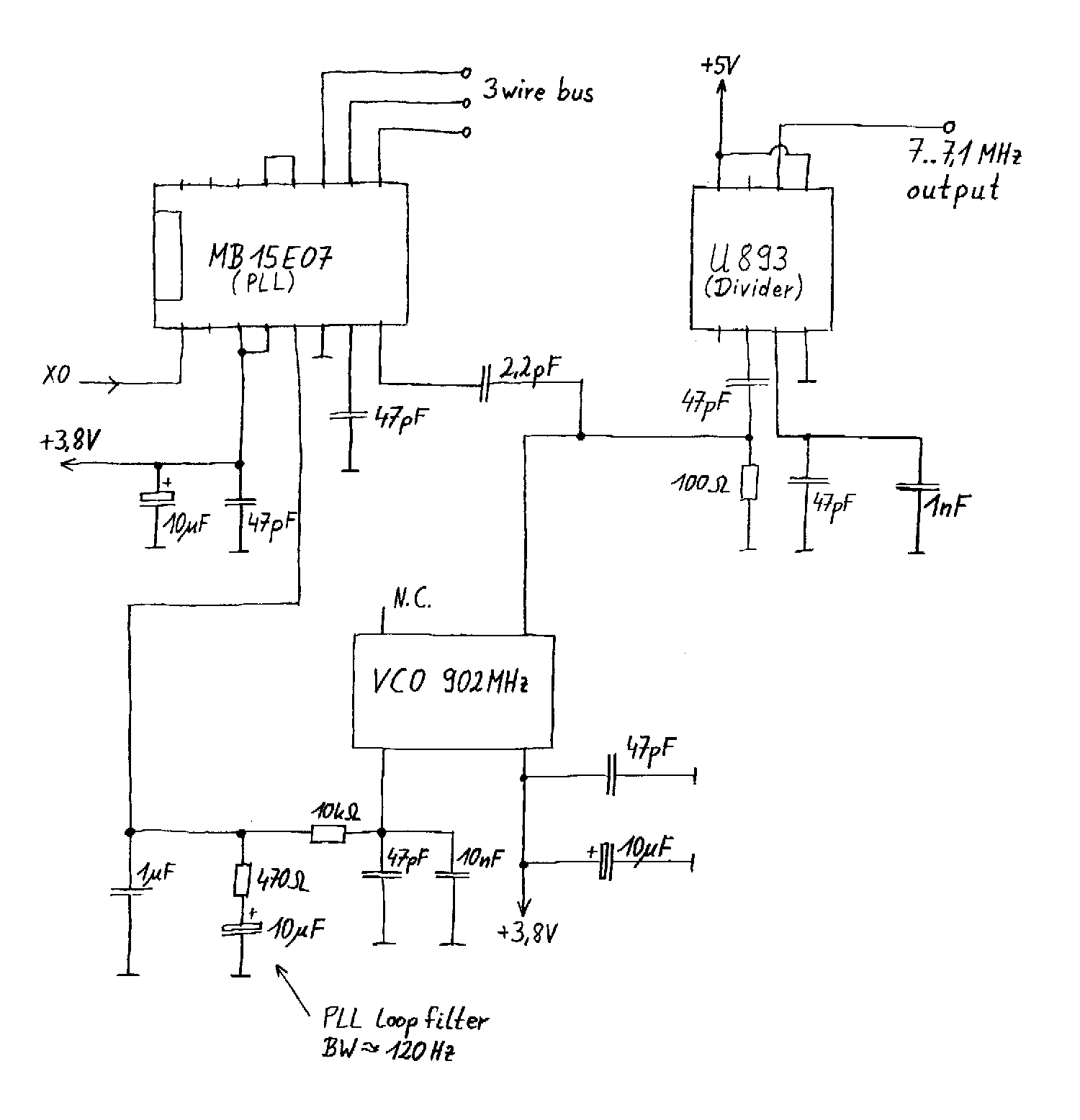

There are not a lot of really new ideas in the schematics. In the RF-part (see schematic in GIF format) you can see the 902 MHz VCO, the PLL synthesizer and the divider. The PLL is programmed via a 3-wire-bus interface from the CPU. The divider can be used for 3 different division ratios (64,128,256). It is fixed set to 128 (pin 5 to Vcc). The loop filter elements are chosen in a way to give the loop a corner frequency of roundabout 120Hz. I have checked the sidebands (8kHz away from the carrier) and they are at least 70dB below the carrier.

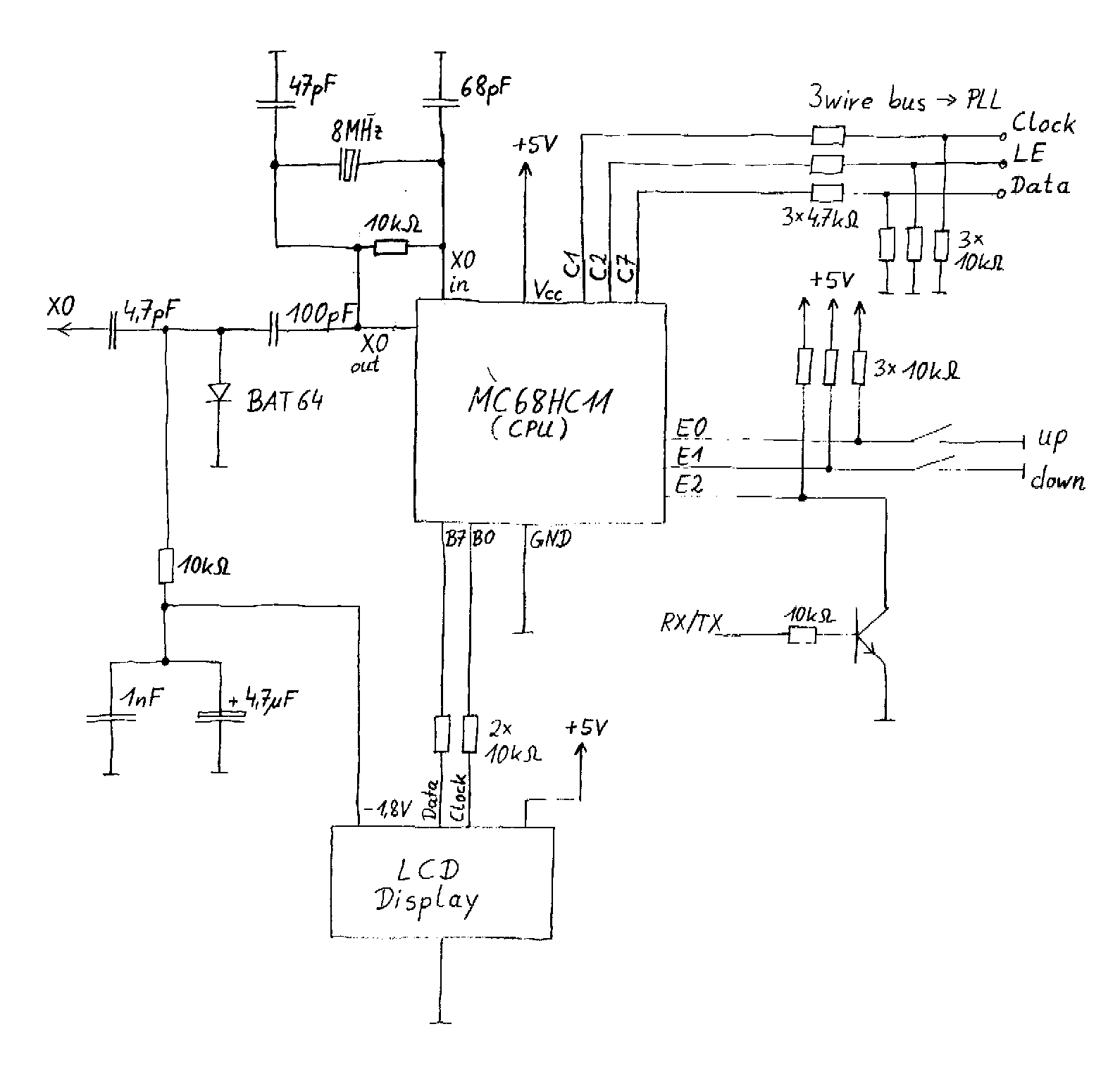

The digital part (see
schematic in GIF format) consists mainly of the 68HC11 CPU. The 3-wire-bus
to the PLL includes voltage dividers to reduce the voltage form 5Volts
to 3.8Volts. Only one thing is really tricky and saves a lot of additional
components: The LCD needs a negative voltage of -1.8 Volts. In order to
create that voltage I have led the 8MHz reference signal over two capacitors
that have a BAT64 schottky barrier diode between them. The signal is not
harmed by that, only the DC part of the digital signal is pushed down below
0 Volts. With a large resistor (10kOhm) and two capacitors I filter out
the AC part of the signal and ... hurray, here we have -1.8 Volts!
The firmware
The 68HC11 version that I have used has only
512Byte of EEPROM for the program code. You may be able to imagine that
this is not a lot, if the software has to include the driver routines for
the LCD display and the PLL circuit. It also has to check the user keys,
calculate the bits for the PLL and show the frequency in kHz in the display.
In TX mode it has to add 750Hz to the frequency to achieve the necessary
frequency shift. When the 512Bytes were used up I was not really done with
everything so I had to optimize the code. And I really took no prisoners
while squeezing out the bytes. Therefore the code is really hard to read
now (and the commends are in only in German, by the way.) One thing I had
to give up was displaying the exact fraction of a kHz in the LCD display.
It simply consumed to much memory. Now it shows only the kHz part of the
frequency and the rest is show as A=0, B=62.5Hz, C=125Hz, D=187.5Hz and
so on. If you should be interested to have a look at the assembler code
anyway and I will be glad to e-mail it to you on your e-mail
request.
